PR 1900 Standard

In Brief

- PR 1900-ST is an innovative device made to disassemble, transport and inflate wheels of the aircrafts and brake systems too.
  Patented and provided by our company, PR 1900-ST was developed in order to make the maintenance opera- tions easier and faster with just one worker employed.
- Its ergonomic design makes sure that the dimensions are minimal without reducing the operational instruments or security as well. As a result, timing and modes are improved because the transportation in hangar is not needed.

Data Sheet

Weight	1300 kg
Lenght	3700 mm
Width	2300 mm
Height	1450 mm

Functionality

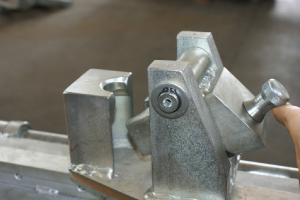

Arm's joint

Wheel basket

The dolly in the left picture is fixed at a mobile arm with a quick joint. A lever works also as a lateral support for the wheel.

Wheel's store

Thus, the wheels take place in the frame blocked by a pressure-activated longitudinal beams.

Mechanical arm

Mechanical arm with an hydraulic device in order to move the wheel.

Manouvering lever

Alignment wheel lever

Disc braking system

The disc braking system blocks the position of the mobile arm in order to avoid dangerous collisions against persons, aircraft parts and other objects.

Brakes' holding system

The PR 1900-ST is also equipped with a special belt+dolly device in order to handle the brakes with the mobile arm.

The belt+dolly is stored in a special frame on the cart that also works as a blocking device for the arm in transport configuration.

Console

The instruments panel shows the value of nitrogen bottle’s pressure, also there is the lever for the switch from working to transport configuration and reverse.

Stabilizer and ramp

Switching from transfer to work position and reverse, the side flag-stabilizer and the loading ramp pneumatically open and close.

Nitrogen bottle chassis

The PR 1900-ST frame allows also the transport of the nitrogen bottles. A system for aircraft’s tyres and springs pressure restore can be installed.
